While physical distancing and facility closures have created significant challenges for businesses, they have also created a unique opportunity to advance your operational projects. Organizations that manage large public and private spaces such as shopping centers, schools, mills, mines, or work camps may consider arranging for 3D laser scans of their infrastructure while their operations are reduced. These scans can be transformed into digital 3D models for architects, planners, engineers, and builders to help upgrade your space.
McElhanney’s experienced laser scanning crews can work safely during the COVID-19 pandemic as the nature of the technology means that comprehensive and accurate site conditions can be captured at a distance, with no physical contact.
Read more about McElhanney’s 3D laser scanning services below, and contact us to discuss your project.

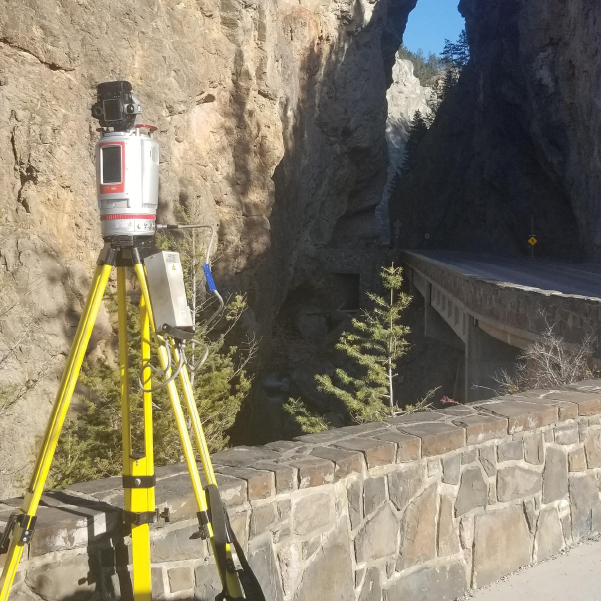

When placed at a location, our 3D laser scanners collect millions of measurements per second. These measurements are used to generate a point cloud. This point cloud can then be transformed into a digital 3D model, which user groups can navigate through to find detailed information for building information modelling (BIM), floor plans, and precise measurements. This information is highly valuable for builders, engineers, and public engagement groups.

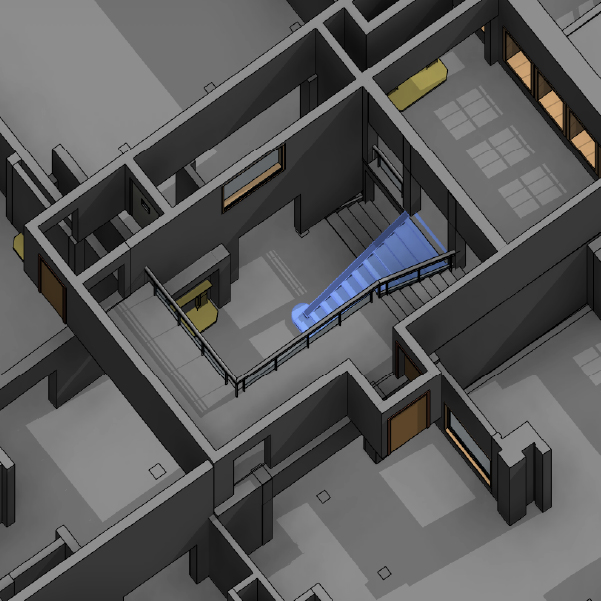

A highly detailed scan allows for the tracing and recreation of an accurate 3D model inside systems like Autodesk Revit®, for a multitude of purposes, including as built representations, building upgrades, visualization, and BIM. This model can then be exported to a range of other packages to suit project needs.
The final as-built model can be used to generate detailed floor plans for leasing purposes and area calculations. The quick turn-around and precision of our scans allows for fast certification and identification of delimiting elements, such as demising walls and structural upgrades that must be accounted for while determining rental and common areas in commercial buildings.

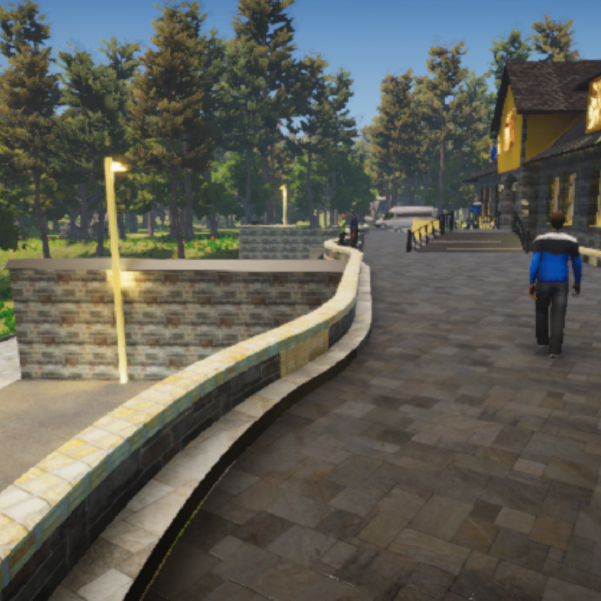

Data collected from a 3D laser scan provides a highly accurate framework on which an augmented or virtual reality (AR / VR) environment can be built upon. AR / VR demonstrations are highly effective for project collaboration, and widely used tools in community planning and major infrastructure projects. As more organizations shift to digital consultation meetings, AR / VR is becoming an increasingly popular tool in the collaboration and consultation process.
Although McElhanney is equipped to gather, process, and model laser scanning data on our clients’ behalf, we know some clients prefer to manage their own raw data. McElhanney is a value-added reseller of LFM (Light Form Modeler) 3D laser scanning software. If your organization prefers to integrate your scan data into your projects directly, we will set you up with LFM software and introduce you to efficient data integration workflows.
McElhanney performs 3D laser scans for clients across Canada. Want to learn more? Review our case studies below:
